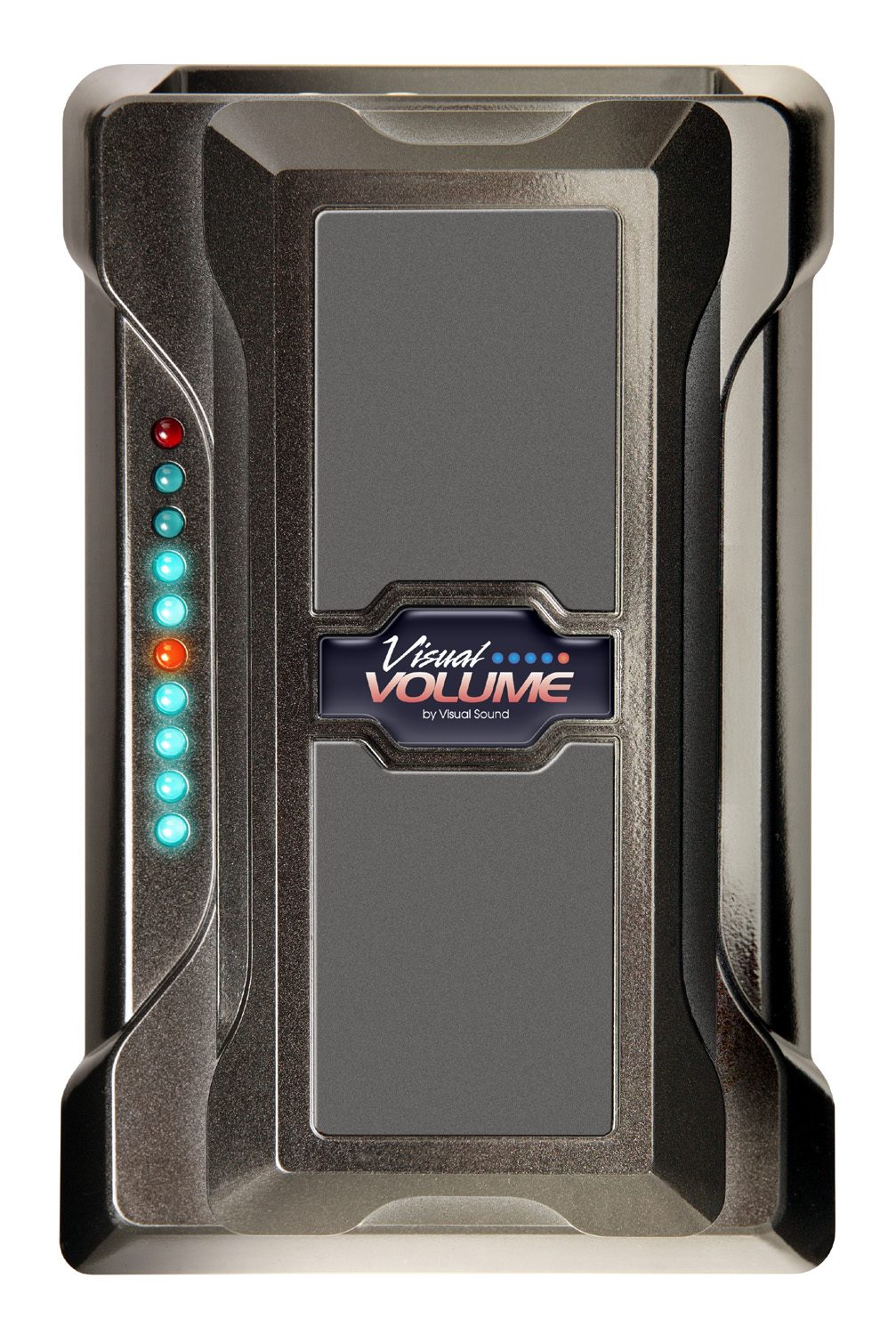

Visual Volume

The Volume Pedal That Shows You Everything

Volume pedals that show you nothing — this one shows you everything. The 0–10 LED readout removes the guesswork from volume swells, letting you set repeatable levels night after night with visual precision. The rack-and-pinion mechanism is dramatically more reliable than string-driven alternatives. In Active mode, the Pure Tone buffer circuit prevents signal and tone degradation across the full sweep. In Passive mode, it doubles as an expression pedal. Works equally well on bass. Two inputs and two outputs for mono or stereo operation. A Tuner output allows silent tuning at any point in the chain.

Visual Volume

See Your Volume. Own Your Stage.

The rack-and-pinion drive eliminates the string breakage and slippage that affects string-driven volume pedals in live use. The 0–10 LED display tracks your foot position in real time.

Dimensions5-13/16" × 9-1/16" (146 × 230mm)
Current Draw26–30mA (varies with LED state)
Operating ModesActive (with Pure Tone buffer + clean boost) · Passive (expression pedal mode)
I/OTwo inputs · Two outputs · Tuner Output
LED Display0–10 readout (blue and red LEDs)
Power9VDC · center pin negative
